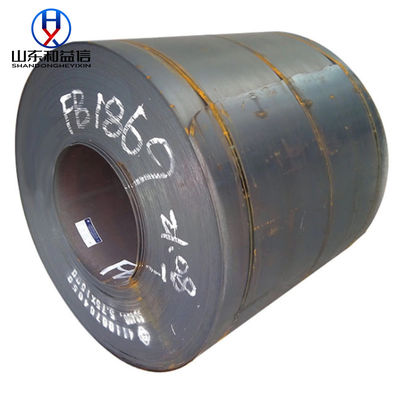

S420M S420ML S420N S42NL Hot Rolled Steel Coil ASTM A572 Gr 60

Products

Metal Corrugated Roofing Sheets

S420M S420ML S420N S42NL Hot Rolled Steel Coil ASTM A572 Gr 60

MOQ:	1Ton
Price:	800$-1500$
Standard Packaging:	Standard package
Delivery Period:	7-15days
Payment Method:	T/T,L/C
Supply Capacity:	30000Tons/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE ISO CNAS CQC

Model Number

S420M,S420ML S420N, S42NL

Technique:

Hot Rolled

Width:

1000-3000mm

Thickness:

2-300mm

Length:

1000-12000mm

Specification:

2-300mm*1000-3000mm*1000-12000mm

Application:

Ship Plate, Boiler Plate, Container Plate, Flange Plate

Minimum Order Quantity:

Price:

800$-1500$

Packaging Details:

Standard package

Delivery Time:

7-15days

Payment Terms:

T/T,L/C

Supply Ability:

30000Tons/Month

Highlight:

S420N Hot Rolled Steel Coil

S420ML Hot Rolled Steel Coil

Product Description

Characteristics of S420m-brand steel

S420m steel is a fine-grain weldable structural steel that has been thermomechanically rolled. It conforms fully to the EN 10025-4/DSTU EN 10025-4 standard.

Classification: Structural steel.

Product: Steel plates and shaped steel.

S420M S420ML S420N S42NL Hot Rolled Steel Coil ASTM A572 Gr 60 0

Chemical composition of S420m steel according to DSTU EN 10025-4,%

≤0.16

≤0.50

≤1.70

≤0.030

≤0.025

≤0.30

≤0.55

≤0.20

≤0.05

≤0.80

≤0.05

≤0.12

≥0.02

Mechanical properties of S420m steel

Nominal gauge, mm	Minimum yield strength, ReH (MPa)	Ultimate tensile strength, Rm (MPa)	Minimum elongation ratio σ, %
≤16	420	520-680	19
> 16 ≤ 40	400	520-680	19
> 40 ≤ 63	390	500-660	19
> 63 ≤ 80	380	480-640	19
> 80 ≤ 100	370	470-630	19
> 100 ≤ 120	365	460-620	19

Analogues to S420M steel

Germany (DIN)	StE420TM
US	ASTM A572 Gr.60
Italy (UNI)	FeE420KGTM

Application

Products made from S420m steel are used in welded structures, large boats and ships, various machinery, bridge supports and metal structures, as well as supporting structures for wind turbines. The steel is used in highway construction and other engineering projects.

Welding

Given its low carbon content and equivalent carbon content, S420m steel is ideally suited to both manual and automatic welding using all the main processes. Its low susceptibility to cold cracking makes preheating unnecessary. Nonetheless, the quality of the weld seam depends on the welding process, conditions and use of appropriate welding filler. Oxyfuel gas welding is not recommended. Filler wire and welding rods must be used as welding filler for this strength category. Basic-covered electrodes are recommended for manual welding. These brands are not suitable for heat-treatment above 580°C. The processor of these brands must ensure that the calculations, design and processing methodology are suitable for the material.
